Détecteur de présence Blanc apparent 360° 2 canaux 8m IP54 80W Led Détecteur de présence Blanc apparent 360° 2 canaux 8m IP54 80W Led
Non contractual photo

Détecteur de présence Blanc apparent 360° 2 canaux 8m IP54 80W Led

View more
124.15 €
VAT Excluded + 0.0100 € of cotisations & taxes
Back to the previous page Complete your purchases
Stock availability
en/En_rupture.png
Request for information / offer Send to a friend Print Product Sheet
ST
TEMTHERONDAS360-101APWH
2080555
124.15 €
150.23 €
0.0100 €
0.0121 €
View the product sheet
Theben Theben

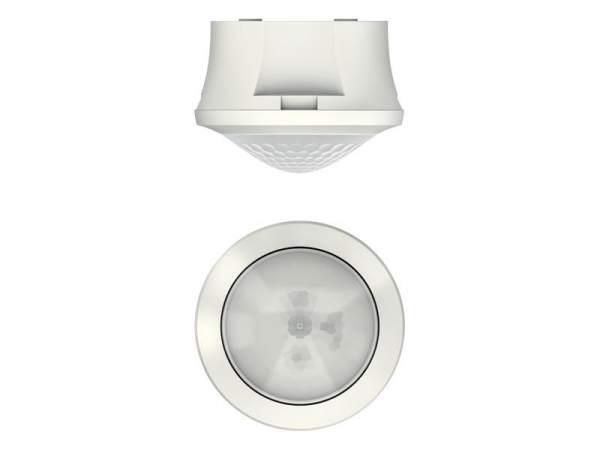

TheRonda S360 - 100 AP WH presence (and motion) detector is suitable for lighting and / or HVac control. It is intended for indoor use and surface ceiling mounting.
  1. Round detection area 360° up to Ø 9m (64 sqm)
  2. Mixed light detection (suitable for all types of lighting)
  3. Set for immediate operation (brightness switching value: 300 lx and time delay: 10 min).
  4. The brightness threshold and time delay settings can be changed with theSenda P or theSenda B remote controls
  5. Sensitivity detection settings with theSenda P or theSenda B service remote controls.
  6. Brightness learning function Test function to check operation and detection area.

      TECHNICAL FEATURES

      1. Operating voltage: 230V AC 50 Hz
      2. Consumption: 0.5W
      3. 1 lighting channel and 1 HVac channel
      4. Mounting height from 2 to 4 m
      5. Brightness threshold from 30 to 3,000lux,
      6. Preset: 300lux
      7. Lighting time delay from 10 s to 60 min,
      8. setting: 10 min,
      9. Pulse function possible
      10. HVac channel timing: 0 s to 10 min (ON), 10 s to 120 min (OFF)
      11. Lighting channel switching capacity: 10 A / 230V AC (cos phi = 1)
      12. HVac channel switching capacity: 50 W / 50VA
      13. Maximum loads:

        halogen or incandescent lamps: 2,300W

        compensated or uncompensated fluorescent tubes: 1,150VA

        tubes with electronic ballast: 10 x 54 / 58W, 16 x 35 / 36 W

        compact lamps: 1,150VA

        LED < 2W: 25W, LED = 2W: 70W

      14. Protection degree: IP54
      15. Protection class: II
      16. Spring terminal connection
      17. Maximum cable cross - section: 2 x 2.5 mm²
      18. Allowed temperature: 0 to + 50 °C
      19. White finish.
        20. 1 x Recupel small electrical installation material and home automation =< 50cm : 0.0121 €ATI
