Détecteur de présence Blanc encastré 360° 1 canal 8m IP20 200W Led Détecteur de présence Blanc encastré 360° 1 canal 8m IP20 200W Led
Non contractual photo

Détecteur de présence Blanc encastré 360° 1 canal 8m IP20 200W Led

View more
81.61 €
VAT Excluded + 0.0100 € of cotisations & taxes
Back to the previous page Complete your purchases
Stock availability
en/En_rupture.png
Request for information / offer Send to a friend Print Product Sheet
ST
TEMTHEPICCOLAP360-100DEWH
2090200
81.61 €
98.75 €
0.0100 €
0.0121 €
View the product sheet
Theben Theben

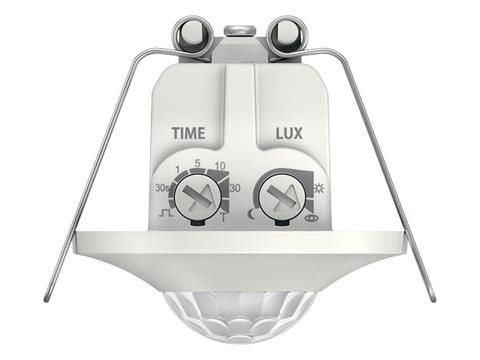

  • ThePiccola P360 - 100 DE WH mini presence detector is intended for flush ceiling mounting. It measures only 44 mm in diameter. The power supply unit fits into the false ceiling.
    1. With a 360° detection area and a range of up to 8 m in diameter, thePiccola P360 - 100 DE WH is ideally suited for small rooms in commercial and residential buildings, such as workstations, toilets, storerooms or corridors.
      1. 1 lighting channel
      2. Automatic lighting control based on presence and brightness
      3. Mixed light measurement (suitable for all types of lighting)
      4. Switchable operation in automatic or semi - automatic mode (= absence detector)
      5. Preset device for immediate commissioning
      6. Light threshold and time delay settings via 2 potentiometers or remote control theSenda P or theSenda B
      7. Possibility of connecting a push button for manual switching
      8. Reliable brightness learning function
      9. Useful pulse function
      10. Test mode for checking function and detection area
      11. Master / slave connection to extend the detection area.

          TECHNICAL FEATURES

          1. Operating voltage: 110 to 240V AC, 50 to 60 Hz
          2. Standby power consumption: ~ 0.4W
          3. 360° detection up to 50m², Ø 8m
          4. Mounting height from 2 to 4m
          5. Brightness adjustment from 5 to 1000lux
          6. Lighting time delay from 30s to 30min
          7. 1 NO contact 230V AC (not potential free)
          8. Breaking capacity: 10A / 230V AC (cos phi = 1)
          9. Maximum loads:

            halogen or incandescent lamps: 2,000W

            fluorescent tubes compensated in series or not: 2,000VA

            parallel compensated fluorescent tubes: 1,300W (140 µF)

            tubes with electronic ballast: 1,200W

            compact lamps: 300W

            LED < 2 W: 55 W, > 2 W: 600W

          10. Protection level: IP55 for the sensor, IP20 for the power supply unit according to EN 60529
          11. Protection class: II
          12. Connection via screw terminals
          13. Allowed temperature: - 20 to + 50 °C.
            14. 1 x Recupel small electrical installation material and home automation =< 50cm : 0.0121 €ATI
