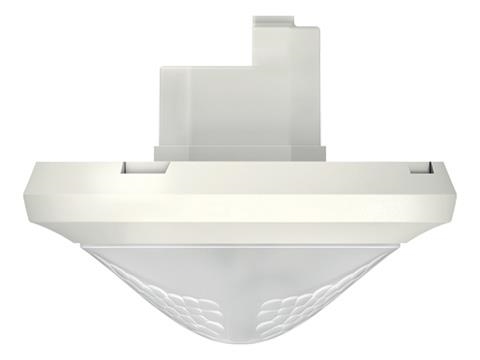

Détecteur de présence Blanc encastré détection 5 x 30m IP54 200W Led Détecteur de présence Blanc encastré détection 5 x 30m IP54 200W Led
Non contractual photo

Détecteur de présence Blanc encastré détection 5 x 30m IP54 200W Led

View more
137.41 €
VAT Excluded + 0.0100 € of cotisations & taxes
Back to the previous page Complete your purchases
Stock availability
en/En_rupture.png
Request for information / offer Send to a friend Print Product Sheet
ST
TEMTHEPASSAP360-101UPWH
2010300
137.41 €
166.27 €
0.0100 €
0.0121 €
View the product sheet
Theben Theben
  • ThePassa P360 - 101 UP WH presence detector is suitable for automatic lighting control via 230V contact (switching only) and / or HVac control via potential - free contact. It is especially intended for corridors and aisles with shelves in warehouses.
    1. thePassa has two rectangular detection zones of 15 x 5m (total 30 x 5m), which can be switched on and off separately.
      1. Possibility to limit the detection area by means of segments.
      2. Instant start - up due to factory presets.
      3. Sensitivity of detection adjustable by remote control
      4. Detection of natural and artificial light (mixed light measurement) and is therefore suitable for all types of lighting (TL, incandescent, halogen, LED)
      5. Manual light switching possible by connecting a push button or switch with automatic push button / switch detection
      6. Adjustment of brightness threshold and time delays via potentiometers or infrared remote control theSenda B, theSenda P or SendoPro 868 - A
      7. Reduction of the switch - off delay in the event of short - term presence (passage)
      8. Parallel master / slave or master / master connection possible to extend the detection area
      9. Automatic or semi - automatic operation (switch - on via push button or switch, automatic triggering depending on absence or brightness)
      10. Adjustable brightness switching value, teach - in function Test mode for checking function and detection area
      11. Recessed ceiling mounting, optional surface - mounted housing.

          TECHNICAL FEATURES

          1. Operating voltage: 110 to 230 V AC + 10%, - 10% 50 to 60 Hz
          2. Standby power consumption: ~ 0.1W
          3. Recessed ceiling mounting, optional surface mount housing, mounting height 2 to 6m
          4. 360° detection, 2 detection zones of 15 x 5m (total 30 x 5m)
          5. Brightness adjustment range: 30 to 3000lux, preset = 300lux
          6. Lighting contact: 1 x 10 A / 230 V AC cos phi = 1 (2300 W, 1150 VA)
          7. Lighting triggering delay: 10 s to 60min, pulse
          8. HVac contact: 1 potential - free contact (50 W, / 50 VA, max. 2 A)
          9. HVac switch - on delay: 0s to 10min, preset = 0s
          10. Temporization at HVac switch - off: 10s to 120min, preset = 10min
          11. Maximum load LED < 2W: 60W, LED > 2W: 180W
          12. Start - up current strength: 800A / 200µs
          13. Maximum number of T5 / T8 electronic ballasts: 16 x 54 / 58 W, 24 x 35 / 36 W, 8 x 2 x 54 / 58 W, 12 x 2 x 35 / 36 W Allowed temperature from - 15 to + 50 °C
          14. Connection via screw terminals, max. cable cross - section 2 x 2.5mm².
          15. White finish.
            16. 1 x Recupel small electrical installation material and home automation =< 50cm : 0.0121 €ATI
