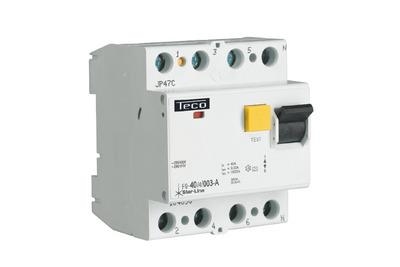

4-pole differential switch 40A 30mA type A breaking capacity 10kA

This differential switch is designed to provide effective and long-lasting protection against leakage currents in electrical installations. Thanks to type A, it guarantees excellent sensitivity with alternating and pulsating DC voltage.

• Number of poles: 4 poles (N connection on the right)
• Rated current: 40A
• Sensitivity: 30 mA (detects current leakage of 30 milliamps and higher)
• Type: A
• Short-circuit current: 10kA (short-circuit breaking capacity)
• Frequency usage: 50/60 Hz
• Protection rating: IP20 (protection against solid objects larger than 12.5 mm)
• Compatibility: DIN rail mounting
• Cross section of terminals: 1.5 - 35 mm² in solid conductor
• Use: In domestic, industrial and commercial installations
• Standards: Meets current safety standards
• Sealable: Yes
• Test button: present

Benefits:

• Reliable protection: Provides effective protection against leakage currents.
• Easy installation: Din rail mounting.
• Durability: Made of high-quality materials for a long lifespan.

Applications:

• Residential electrical installations
• Industrial installations
• Commercial projects where electrical safety is paramount
