24h clock without power reserve 230V 50Hz 1CO 16A

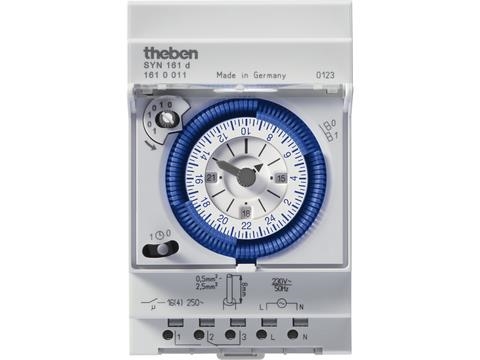

1. The SYN161D time switch is a day clock with a 12 / 24 hour dial. Programming is done by 96 captive jumpers, the switching interval is 15 minutes.

1. The reading of the time is facilitated by the hands and windows indicating 3 - 6 - 9 in the morning and 15 - 18 - 21 in the afternoon.

1. The 3 - module wide modular housing is intended for Din rail or wall mounting.

1. On permanent / Auto / off permanent selector.

1. Indicating on or off status

1. Manual override function.

Technical specifications:

1. Power supply: 230V 50Hz

1. 1 16A changeover contact

1. Consumption: 1VA

1. Allowed temperature: - 20 to + 55 °C

1. Protection level: IP20

1. Hood: sealable.
